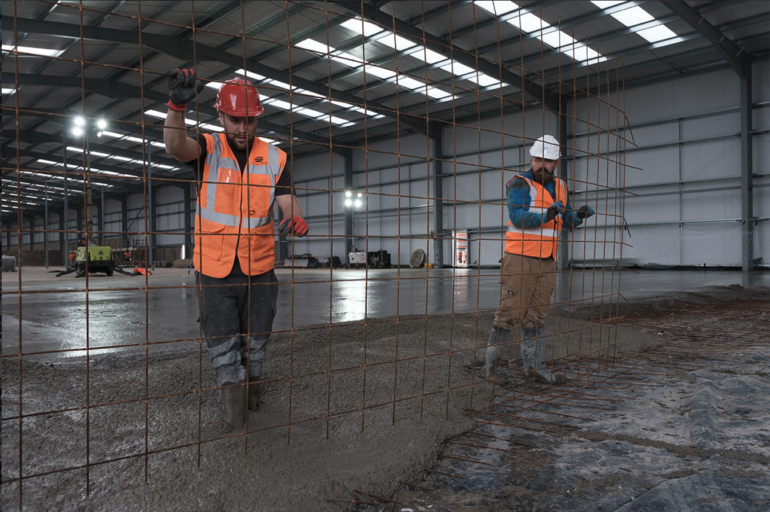

Steel welded reinforcement mesh is placed on top of the membrane. This reinforcement:

• Controls shrinkage cracking
• Add tensile strength
• Helps spread loads across the slab

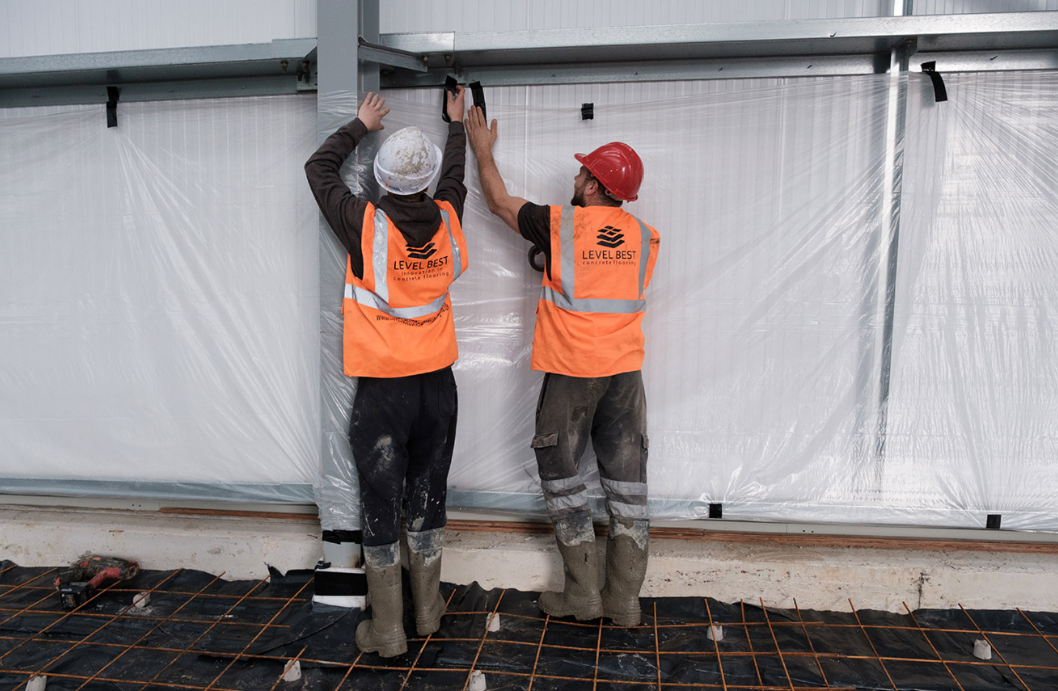

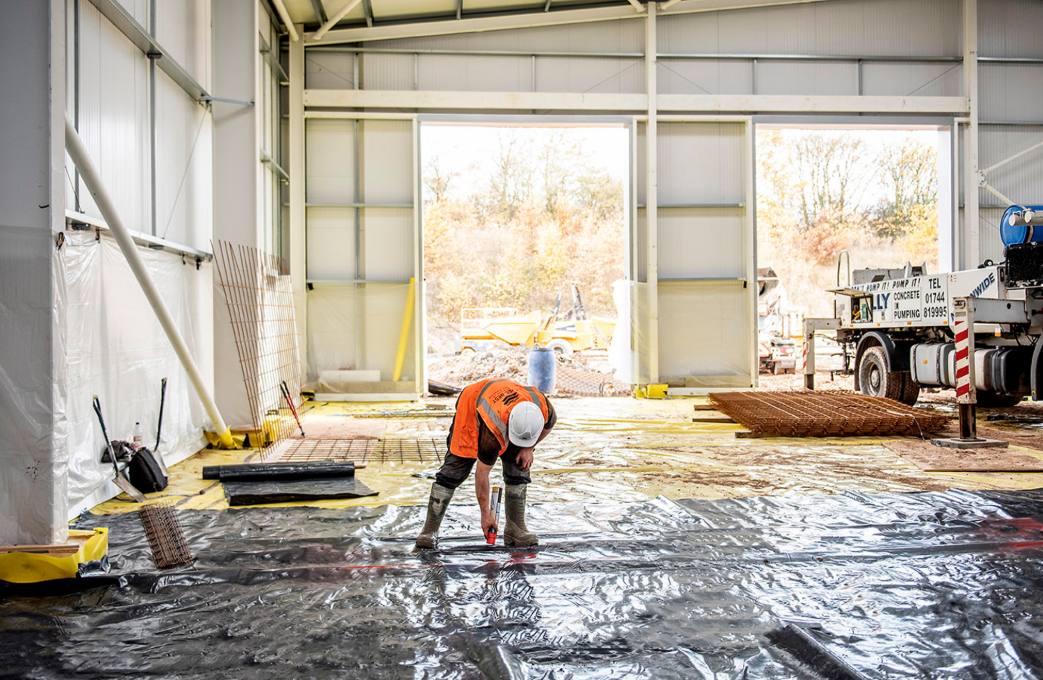

The black plastic sheet covering much of the floor is the damp proof membrane.

It's purpose is to stop moisture rising into the concrete, prevent water loss from fresh concrete

during curing and protect the floor finishes. The membrane is overlapped at the joints and is taped to keep it watertight.

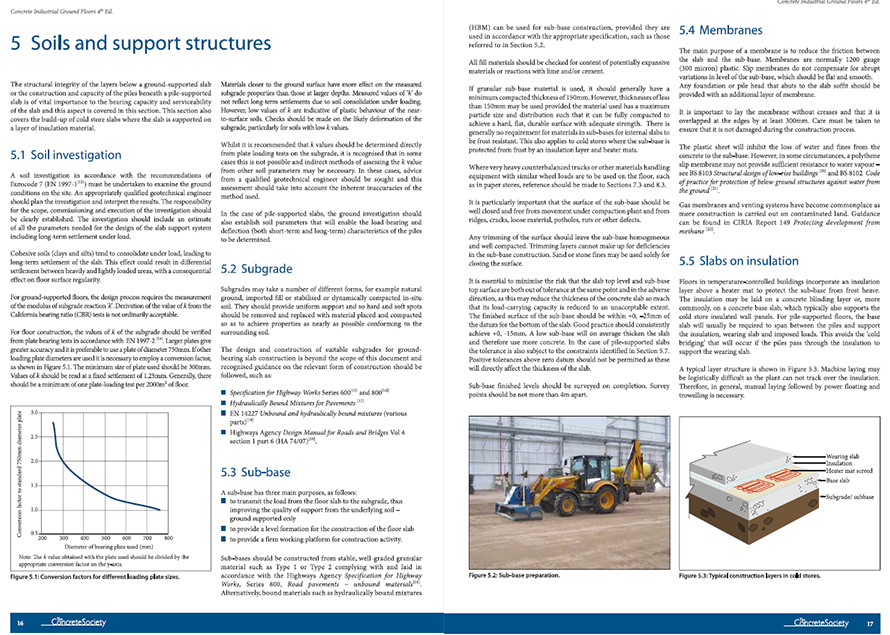

Section 5 Soils and Support Structures

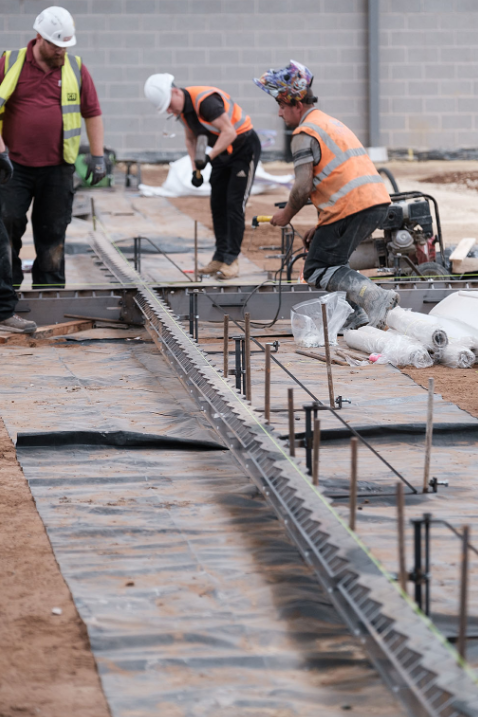

Along the slab edges are embedded joint assemblies. These contain:

• Dowel bars
• Load transfer plates
• Crack inducers

Their job is to:

• Transfer forklift loads
• Minimise differential settlement
• Allow controlled movement

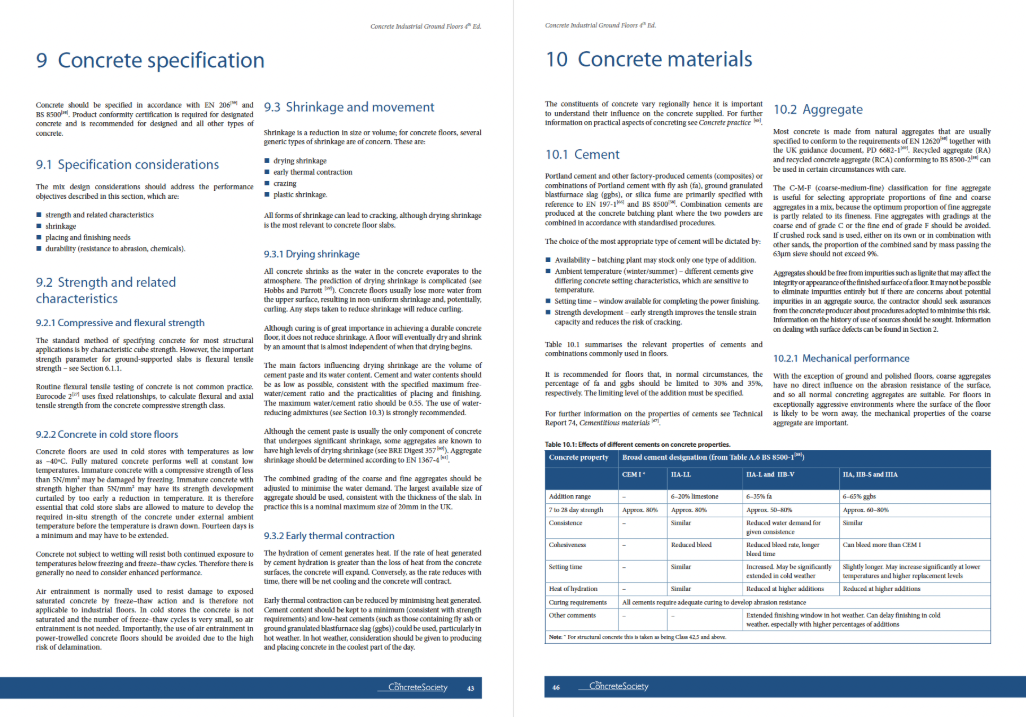

Section 9 Concrete Specification & Section 10 Concrete Materials

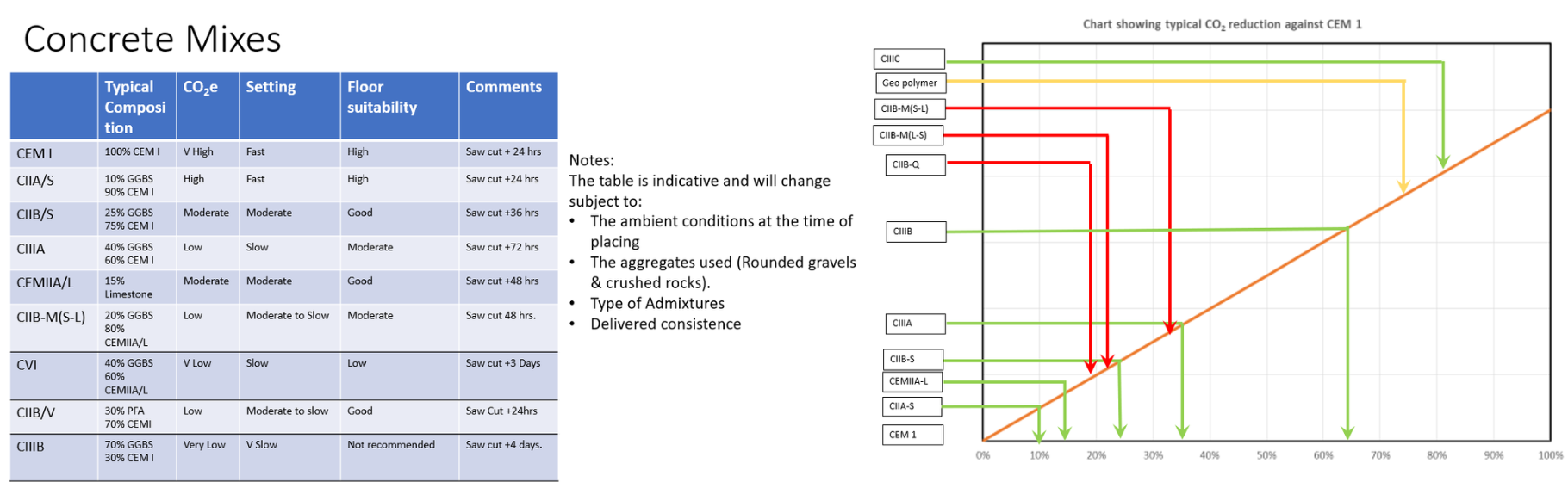

Typical CO2 Reductions Against CEM1

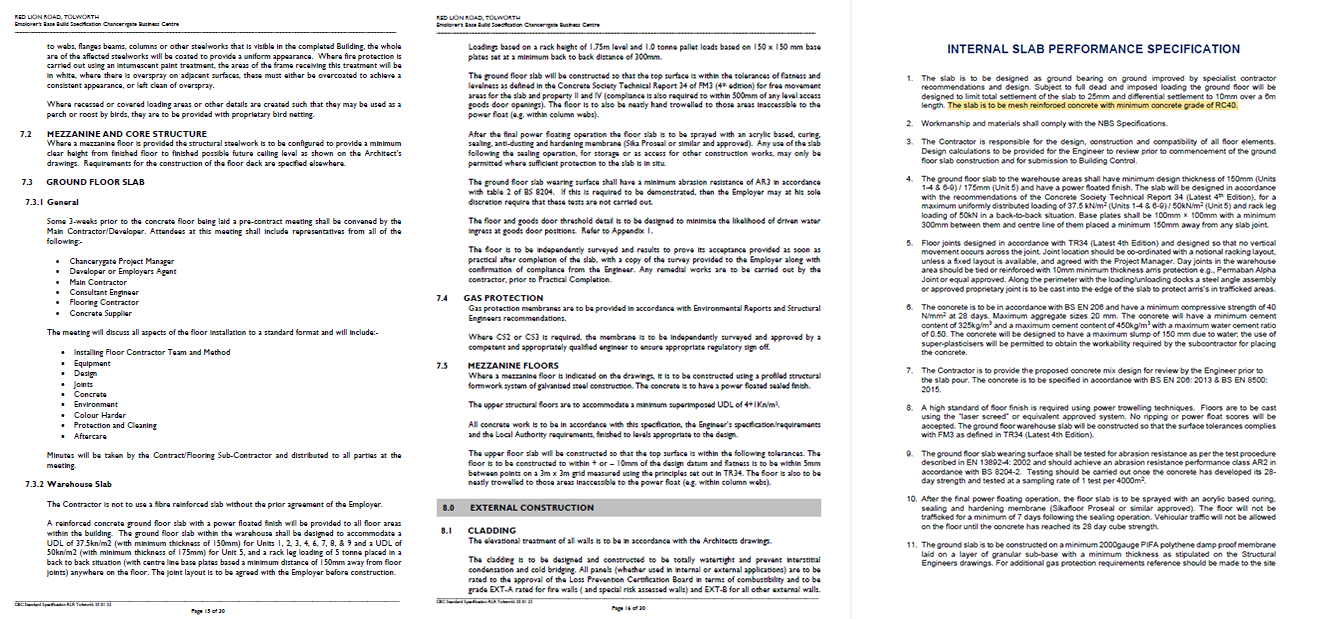

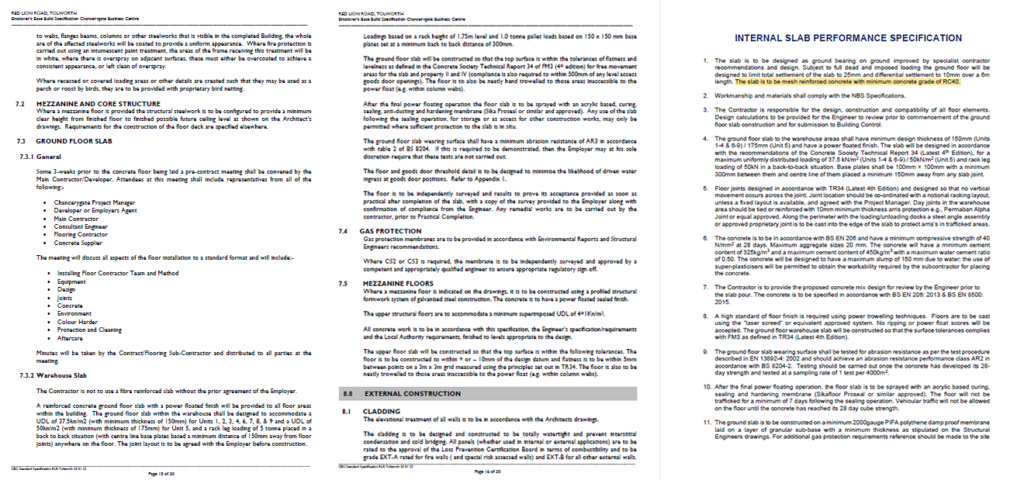

Base Build and Engineers Specifications

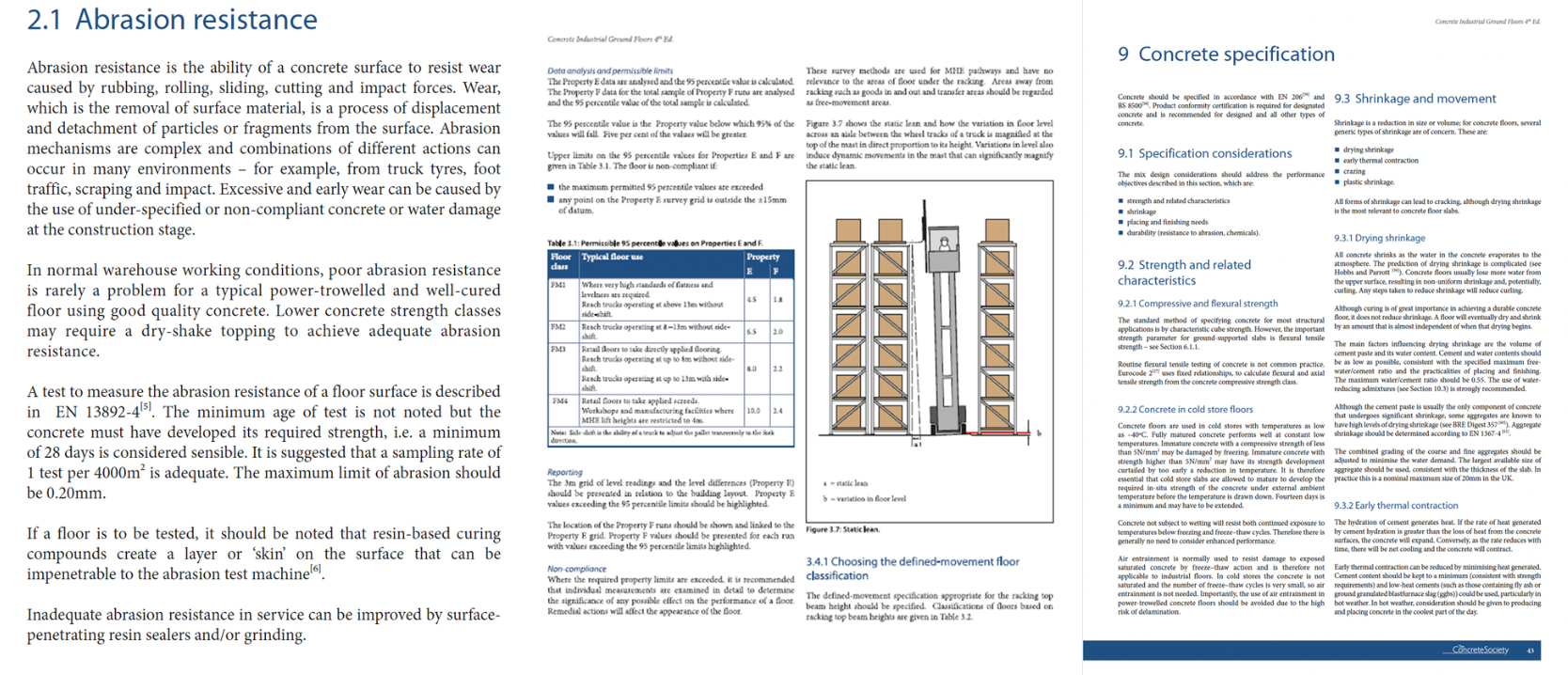

Can we compromise on abrasion resistance, surface tolerance and strength gain?

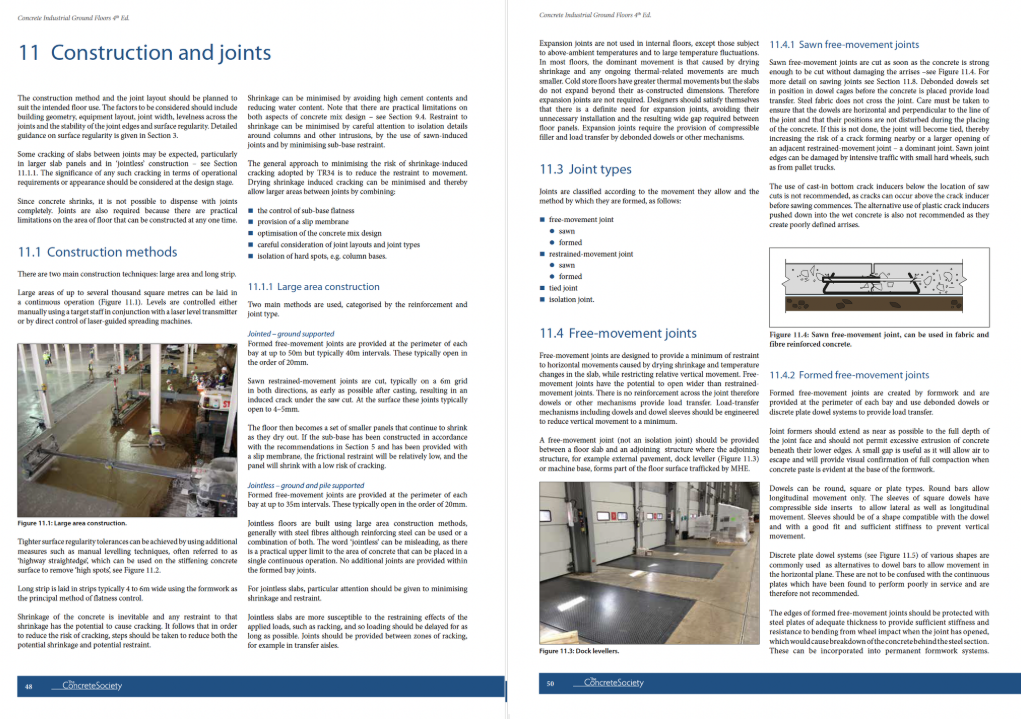

Modern Construction Techniques

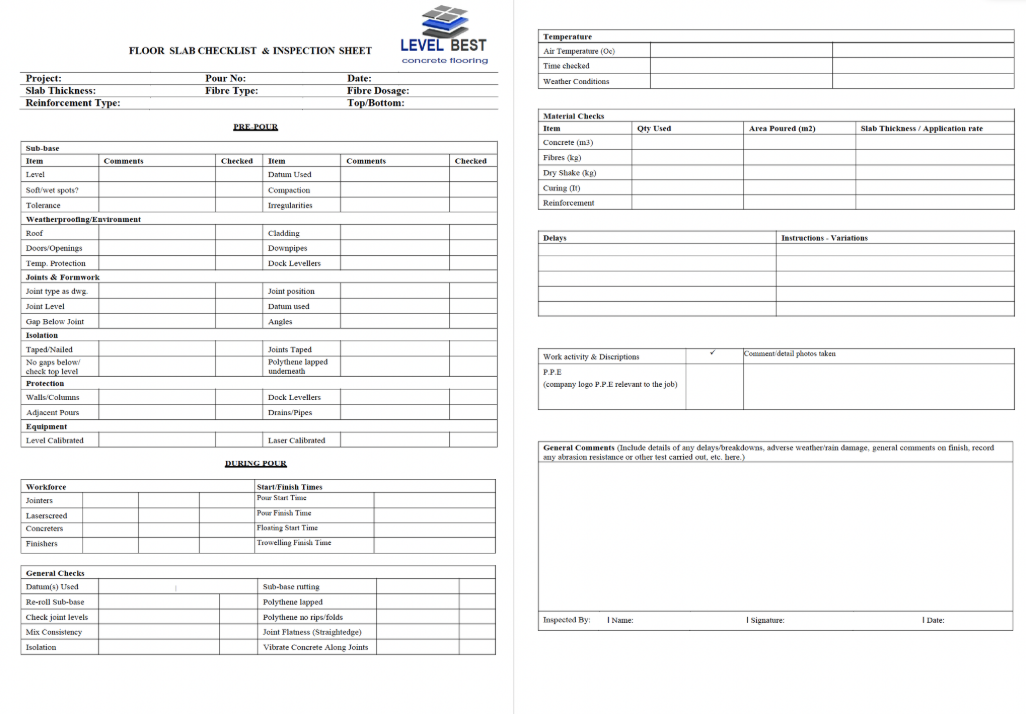

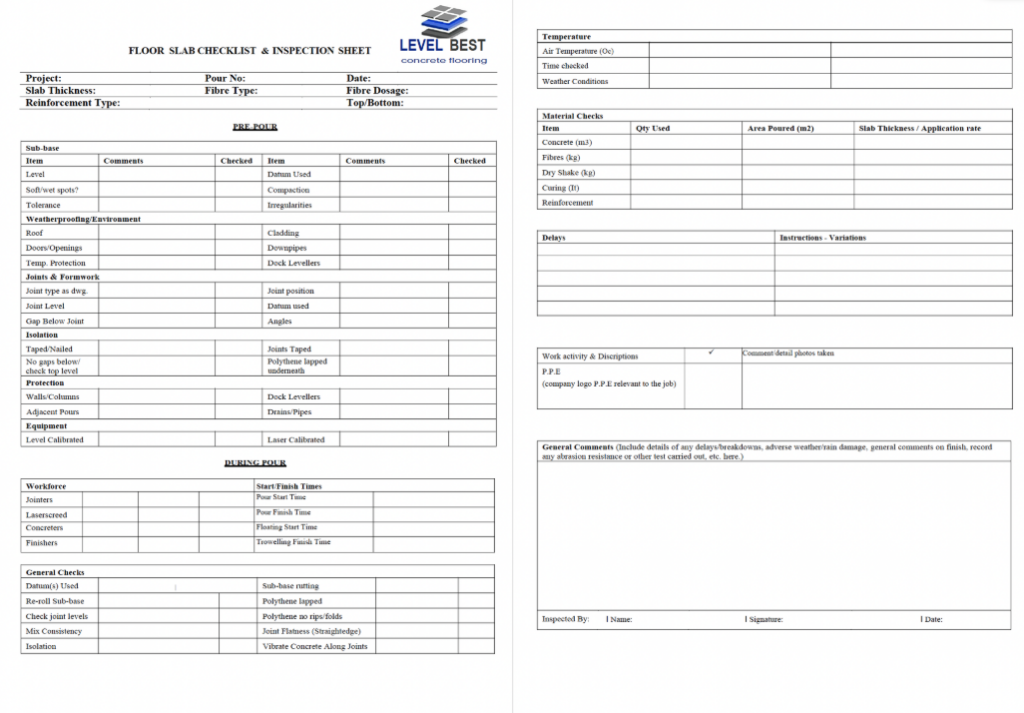

Internal QA managed by Level Best's Supervisor

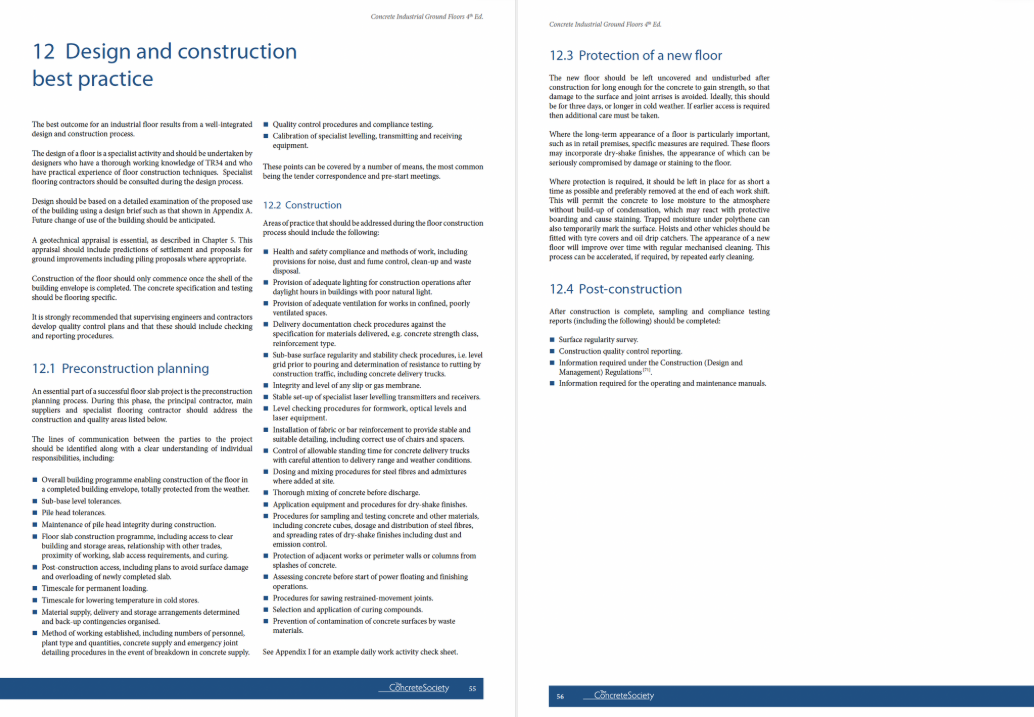

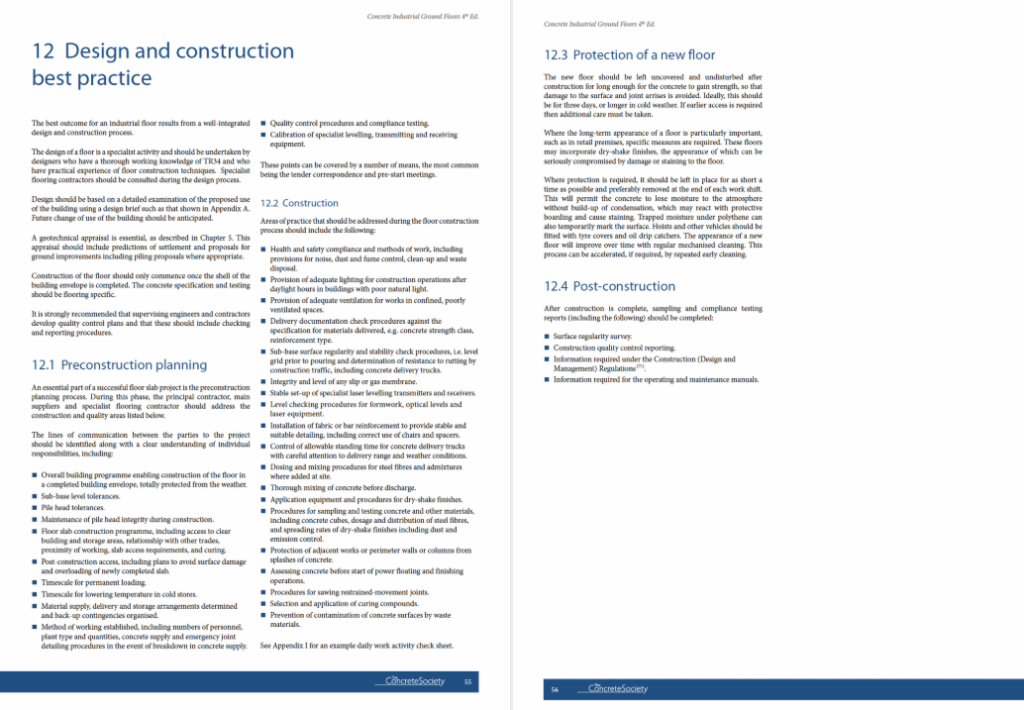

TR34 guidance covering design, pre-construction and post construction
